DAM® DIE ASSEMBLY MACHINE 20 T. COMPACT
It is intended for automatic mounting of the die in the die holder. It allows to simplify and speed up the assembly of the die in the die holder, without operator effort and in complete safety.

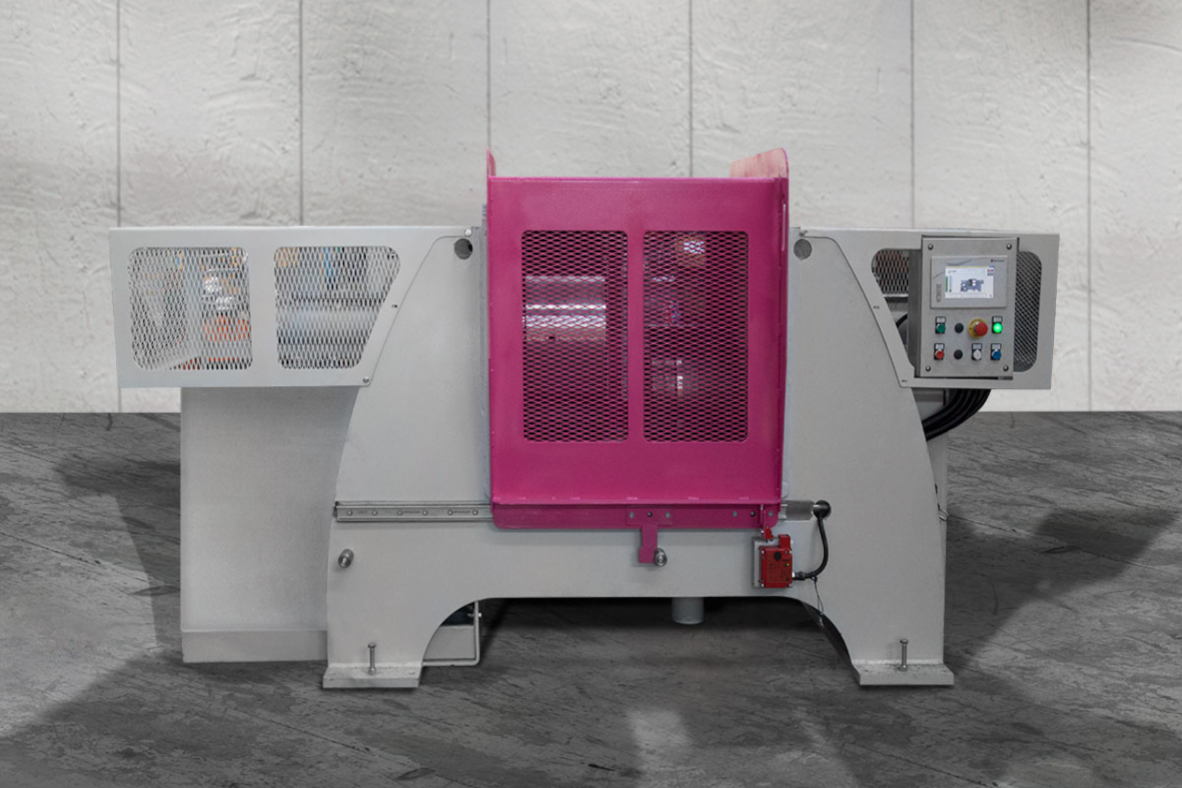

The machine is made up of a welded and machined metal frame. Designed to correctly support the die holder and a translation cradle for handling the die that must be inserted inside the die holder. The machine is supplied complete with carter and safety guards, the electrical panel is mounted on the machine complete with PLC for the management of the automatic cycle and the relative sensors. The hydraulic control unit is also housed on board the machine with the relative system for moving the two cylinders for horizontal translation of the die and the hydraulic cylinder for vertical translation of the cradle housing the die.
Features
AUTOMATIC CYCLE

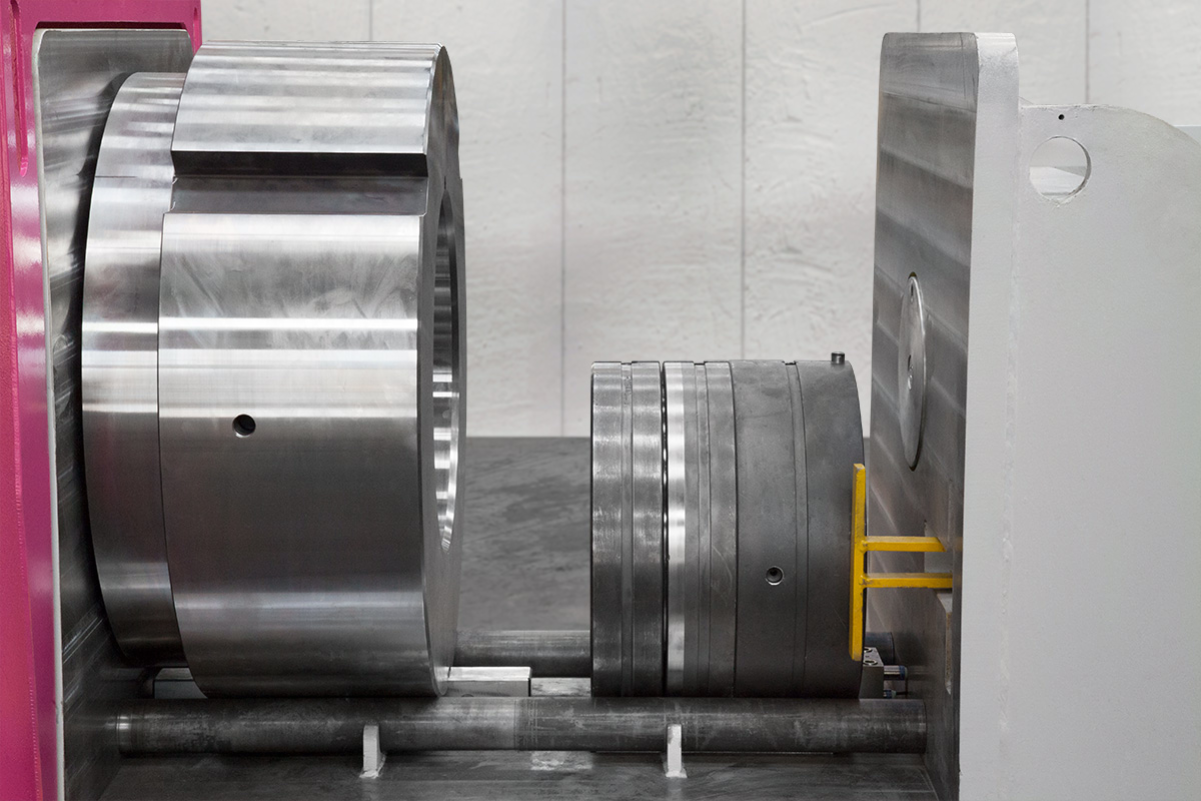

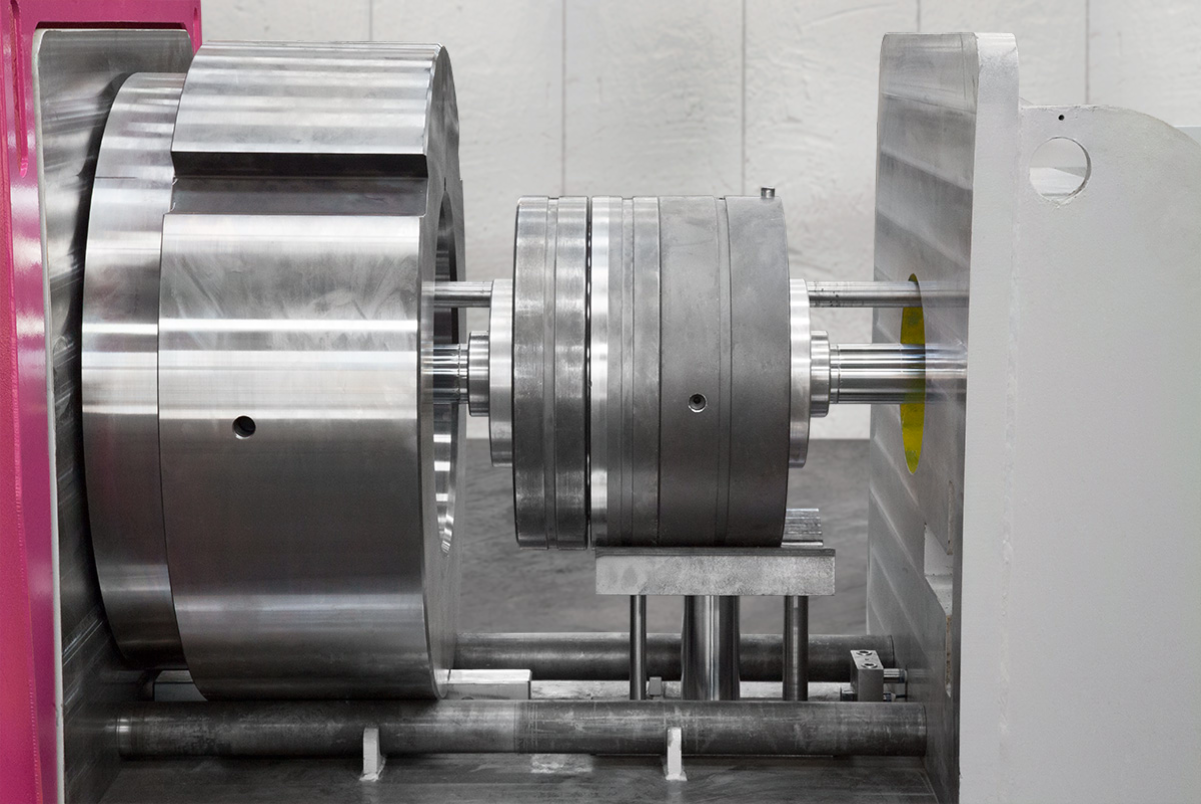

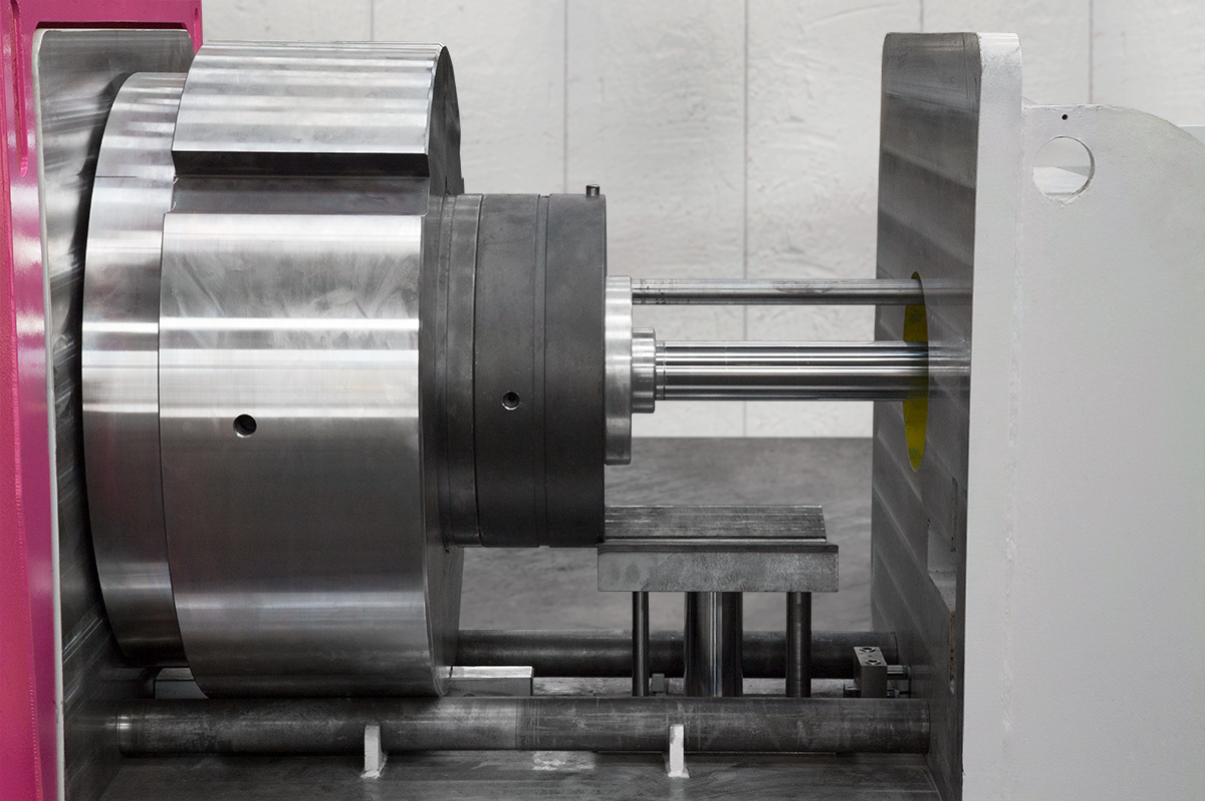

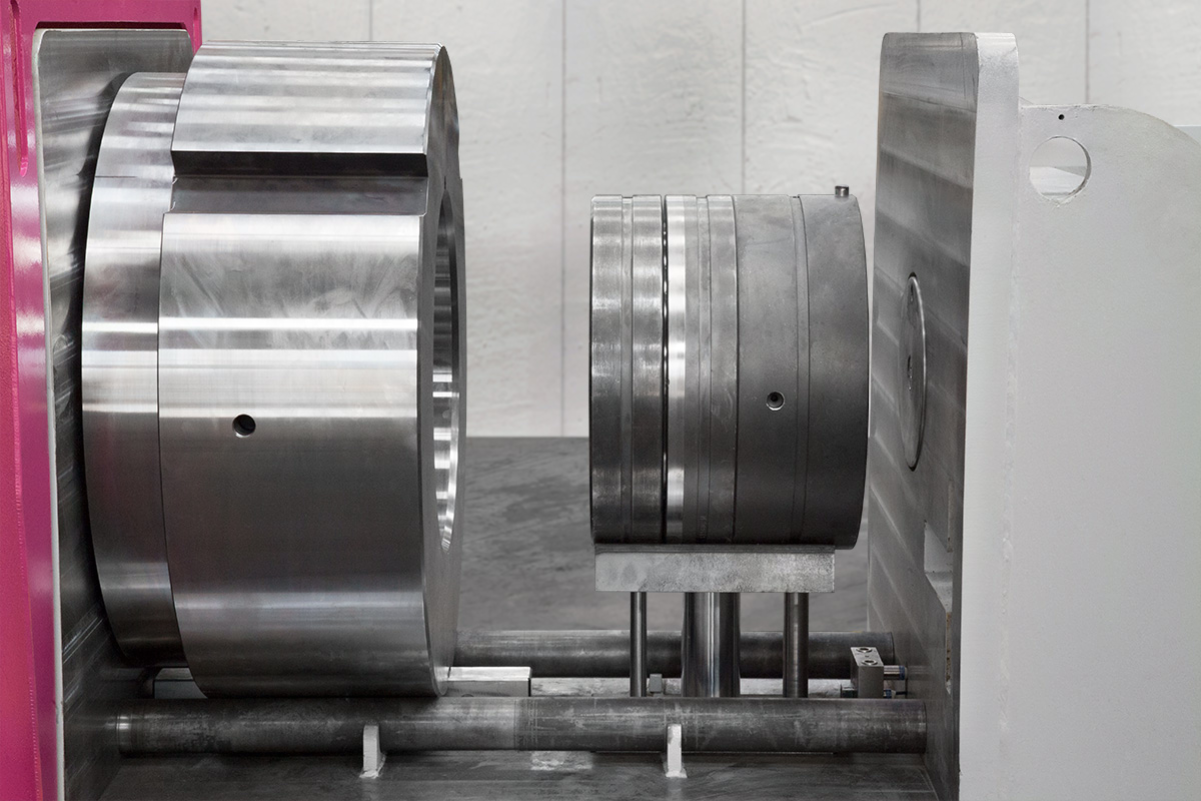

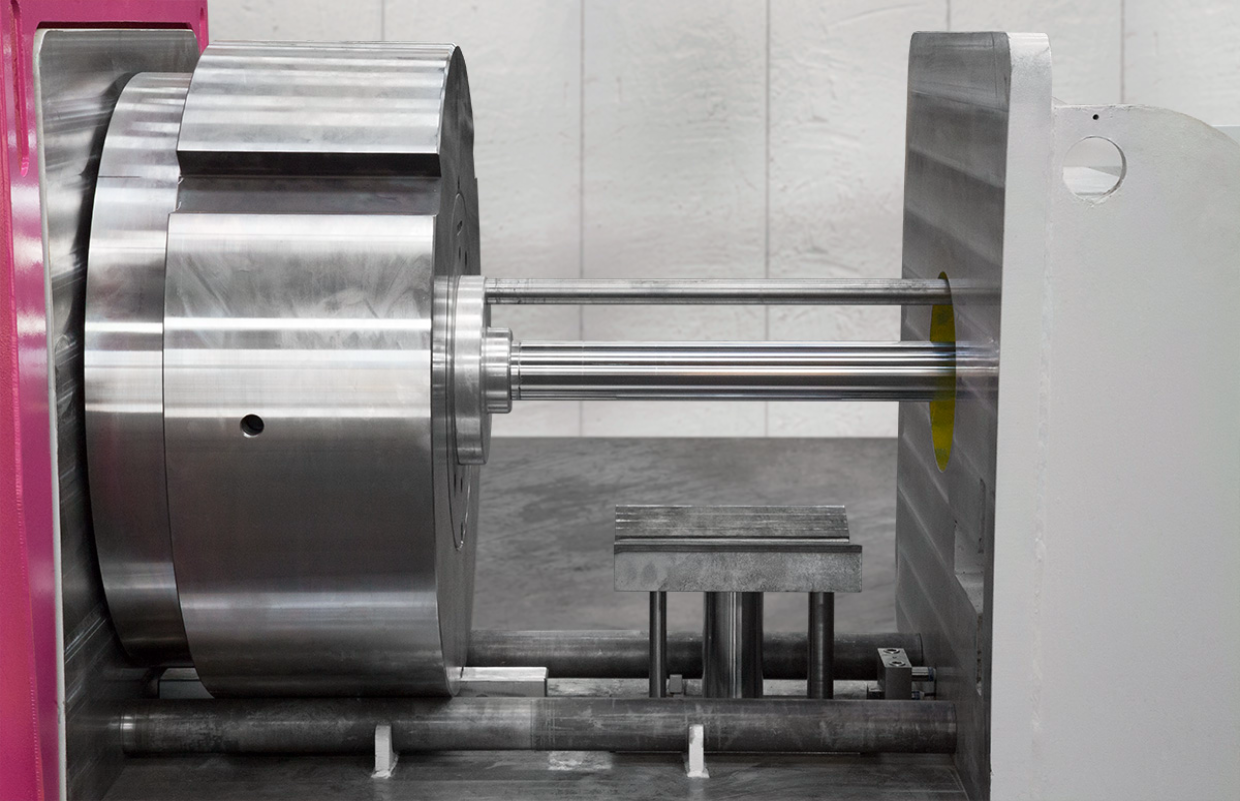

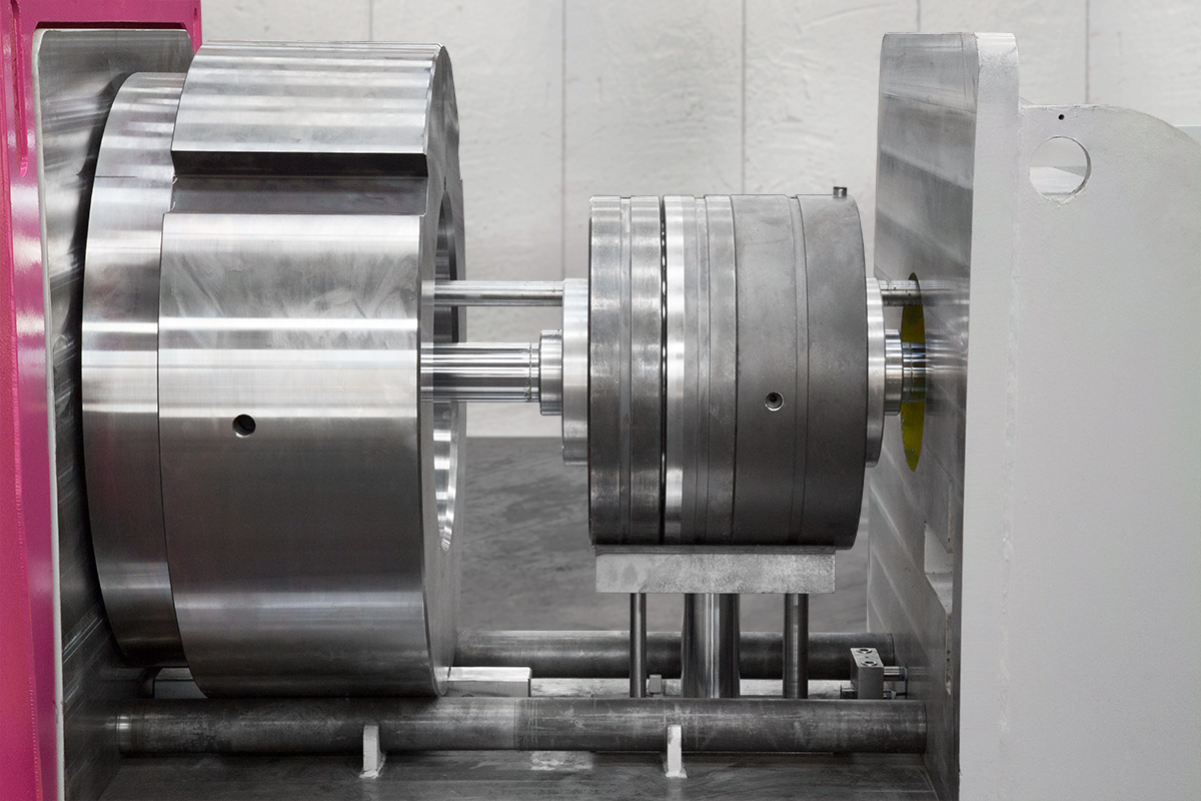

The operator opens the gate, loads the die holder and the die to be coupled respectively in the appropriate stations. Closes the gate and starts the automatic cycle. Using sensors, the machine detects the dimensions of the internal diameter of the die holder and the external one of the die. If the detection is correct, the cycle continues automatically, translating the die inside the die holder. At the end of the operation a warning on the display indicates that the cycle has ended correctly. The operator can then open the gate and extract the coupled equipment ready to be sent to the die pre-heating oven.
The machine is supplied in compliance with CE standards or alternative ones.
DAM DIE ASSEMBLY MACHINE®: a CO.M.P.ES. S.p.A. trademark.
Compes reserves the right to apply without prior notification any technical modification deemed necessary or as a function of specific requests.
